Flood Irrigation: How It Works, Types, Pros and Cons

Flood irrigation moves water over the field by gravity. This guide covers how it works, the basin, border and furrow types, the pros and cons, and how to make it more efficient.

Tanja Folnovic

Flood Irrigation: How It Works, Types, Pros and Cons

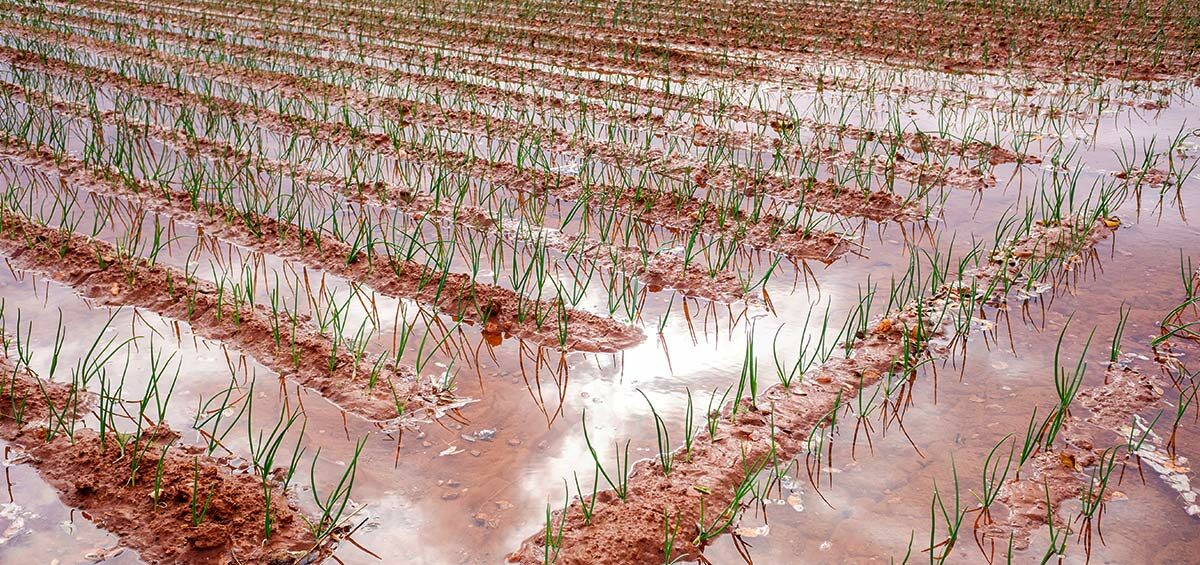

Flood irrigation, also called surface irrigation, delivers water to a field by gravity, without pressure or pumps at the field. Water flows over the soil or down furrows between rows. It is the cheapest and most energy-efficient method to run, but efficiency depends heavily on design: poorly managed systems often apply only 40–60% of the water to the crop, while well-designed ones reach 70–90% or more.

Flood irrigation is the oldest irrigation method and is still the most common in much of the world, especially in developing countries. It suits flat, well-graded land, moderate to heavy soils and crops that tolerate wet roots. It does not suit sandy soils or steep, uneven fields. This guide covers how it works, the three main types, the pros and cons, and the changes that make it use less water.

At a glance

  • How it works: gravity moves water over the field surface or down furrows. No field pressure needed.
  • Typical application efficiency: about 40–90%, depending on design and management. Poorly managed systems often fall to 40–60%
  • Types: basin, border and furrow irrigation
  • Best for: flat or evenly graded land, medium to fine-textured soils, rice, pasture, forage, and row crops such as maize, soybeans and vegetables
  • Main downsides: high water use when poorly managed, runoff and leaching, not suitable for sandy soils, needs grading
  • Main upsides: lowest installation cost, low energy use, fast and thorough soil wetting, no leaf scalding

Efficiency figures are potential values, not guaranteed field results. Sources: USU Extension, Sacramento Valley Irrigation Efficiency Table, Ag Alert: done right, flooding fields can be efficient.

What is flood irrigation?

Flood irrigation is any irrigation method that delivers water to cropland by gravity, without pressurising it (Oklahoma State University Extension). Because it needs no sprinklers, emitters or high-pressure pumping at the field, it is low-tech, low-energy and cheap to build. "Ditch irrigation" is the same method when the water comes from a ditch.

How does flood irrigation work?

  1. Water is diverted from a canal, ditch, river, pipe or pump into the field.
  2. It is released at the high end of the field, through gates, siphon tubes, pipes or cuts in the ditch bank.
  3. It flows by gravity across the surface or down furrows, wetting the soil as it goes.
  4. It soaks into the root zone. The soil's intake rate decides how far and how fast the water spreads.
  5. Excess water drains off the low end, or is held in the field or captured for reuse.

The time the water spends in the field has to match the soil's intake rate. Too long and water is lost below the roots. Too short and the far end of the field stays dry.

Types of flood irrigation

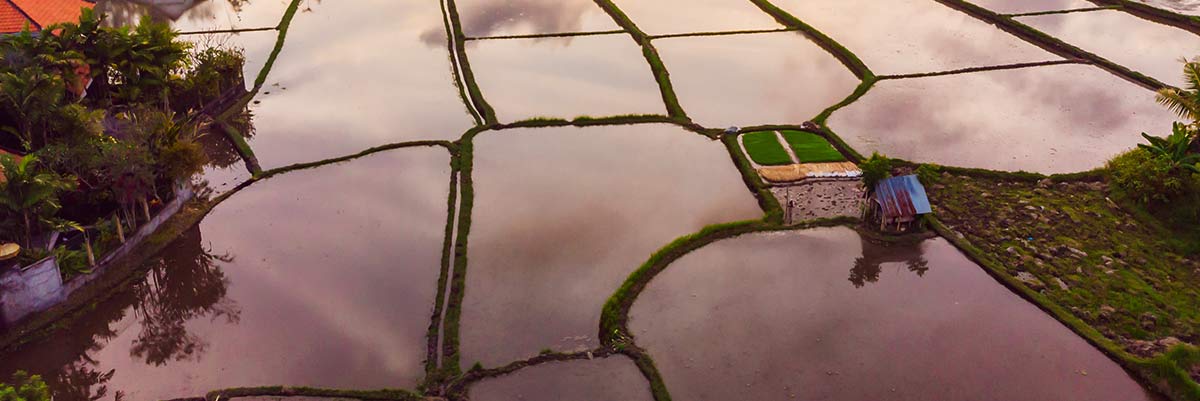

Basin irrigation. A level, shallow basin surrounded by banks (levees) is filled with water, which stands until it soaks in. It suits crops that tolerate standing water, such as rice, and medium to fine-textured soils. Basins can be large and rectangular, or small and individual, such as a ring around a single fruit tree filled from a ditch.

Border irrigation. The field is divided into long, gently sloping strips (borders) separated by low ridges, with a ditch along the high side. Water is released onto each strip and advances down it. Used for forage, small grains and other close-growing crops that do not tolerate standing water. It needs soils with moderate to high intake rates, so water does not pond.

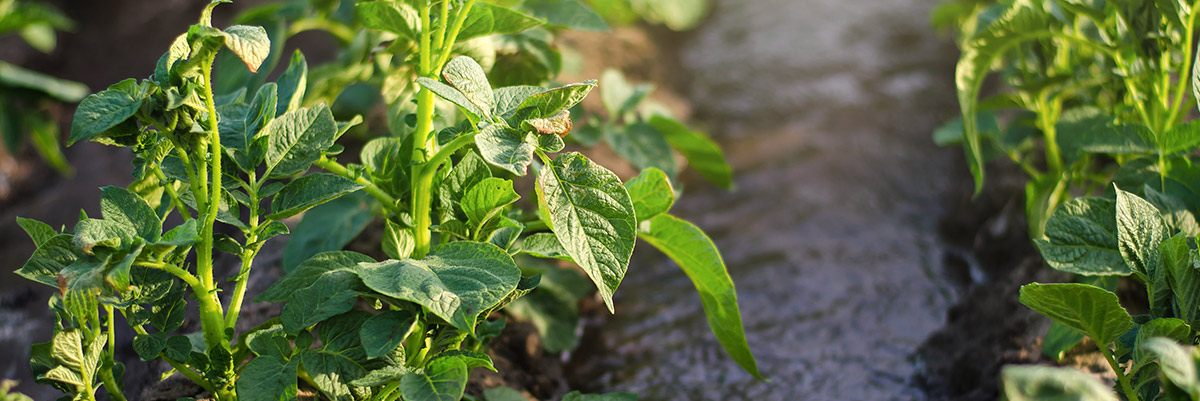

Furrow irrigation. Water runs down furrows between planted ridges and soaks sideways into the root zone. It is the most common type for annual row crops such as maize, soybeans and vegetables. Water reaches the furrows from a ditch or pipe through siphon tubes or gated pipe. It works on soils with reasonable intake rates and fields of many shapes.

Flood vs furrow irrigation

Furrow irrigation is one type of flood (surface) irrigation. The difference is where the water goes: in basin and border irrigation it covers the whole soil surface, while in furrow irrigation it runs only in the furrows between rows, wetting less of the surface. That usually means less evaporation and less water on the foliage and crop stems, and it makes furrow irrigation the usual choice for row crops.

Which crops and soils suit flood irrigation?

  • Rice: basin irrigation, because rice tolerates and often benefits from standing water.
  • Pasture, alfalfa and small grains: border irrigation.
  • Maize, soybeans, cotton, vegetables: furrow irrigation.
  • Orchards: basin irrigation, often one basin per tree or row.

Soil matters as much as crop. Medium to fine-textured soils (loams and clays) hold water and suit flood irrigation. In sandy soils water drains below the roots before the field is covered, which wastes water, so flood irrigation is a poor fit there.

The land also has to be graded. Fields that are too steep or too flat need levelling so that water moves evenly. As a rule, sandy soils need steeper grades and shorter runs, and clay soils flatter grades and longer runs.

Advantages of flood irrigation

  • Lowest cost. Cheap to build and run, with little or no pumping energy at the field.
  • Low energy use. Water moves by gravity, so there is no pressure to generate.
  • Fast, thorough wetting. It recharges the root zone quickly and deeply and can raise the water table.
  • No leaf scalding or wet-canopy disease. Water goes onto the soil, not the foliage, unlike sprinklers.
  • Simple to operate with basic equipment.

Disadvantages of flood irrigation

  • High water use when poorly managed. More water may be applied than the crop needs, with runoff at the field edge and leaching below the roots.
  • Nutrient loss. Runoff and leaching carry fertiliser out of the field.
  • Poor fit for sandy soils, where water soaks in too quickly.
  • Needs grading. Steep or uneven fields need levelling before flood irrigation works.
  • Uneven application. The top of the field often gets more water than the bottom.
  • Labour for setting and moving water, unless gates and pipes are automated.

How to make flood irrigation more efficient

Flood irrigation is ancient, but its efficiency can be improved a lot.

  • Laser levelling. Precisely levelled fields let water spread evenly and reduce over-watering at the top of the field. Laser-guided equipment makes this accurate.
  • Surge irrigation. Water is released in pulses instead of continuously. The first pulse seals the soil surface, so later pulses advance faster and more evenly, with less runoff and deep loss.
  • Tailwater recovery. A retention pond at the low end captures runoff, and a pump returns it to the head of the field or the supply.
  • Match furrow length, slope and flow to the soil. Short furrows and steeper slopes suit fast-draining soils, long furrows and flatter slopes suit clay.
  • No-till and residue in furrows. Leaving the furrow untilled keeps cover and residue in place, which improves infiltration and cuts runoff. Studies have reported large runoff reductions from conservation tillage in furrow irrigation.
  • Schedule by soil moisture, not the calendar. Soil moisture probes and weather data show when the field actually needs water.
  • Automate gates and pipes to cut labour and make timing precise.

Flood irrigation vs other methods

For a full comparison, see our guide to irrigation methods.

When flood irrigation is the right choice

Flood irrigation usually makes sense when:

  • the land is flat or can be graded evenly;
  • soils are medium to fine-textured;
  • water is cheap and plentiful, for example from a canal allotment;
  • the crop tolerates wet roots, or is a row crop that suits furrows;
  • capital is limited and energy is expensive.

It is usually the wrong choice on sandy soils, steep or uneven fields, or where water is scarce or expensive. In those cases, sprinkler, pivot or drip will use less water.

A short history

Flood irrigation is thousands of years old. The first irrigation canals were built around 5500 BC in Mesopotamia, in what is now Iraq. It stayed the dominant method for millennia, and it still accounts for a large share of irrigated land worldwide, including more than a third of irrigated fields in the United States as of 2015.

How to manage flood irrigation in farm management software

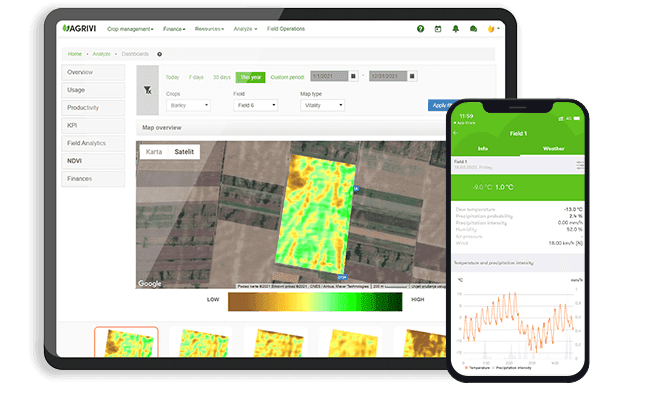

Soil, crop, water source, flow rate and timing all affect how well flood irrigation works. AGRIVI 360 FMS gives farm managers one place to:

  • Record every irrigation by field, crop and date, including water source, amount and duration
  • See the cost per irrigated field, including labour hours and machinery
  • Plan and assign work such as ditch cleaning, gate repairs and levelling
  • Compare irrigation with outcomes by looking at water use against yield and quality, to see whether flood irrigation is paying off or whether switching method would
  • Track input stock so fertigation products are accounted for

Learn more about AGRIVI 360 FMS · Book a meeting

Flood irrigation FAQs

What is flood irrigation?

Flood irrigation, also called surface irrigation, delivers water to a field by gravity, over the soil surface or down furrows, without pressurised equipment at the field.

What is the difference between flood and furrow irrigation?

Furrow irrigation is a type of flood irrigation. In basin and border irrigation, water covers the whole soil surface. In furrow irrigation, it runs only in the furrows between crop rows.

How efficient is flood irrigation?

It varies widely, from about 40% to 90%, depending on design and management. Poorly managed systems often apply only 40–60% of the water to the crop. Well-designed ones, with levelled fields, surge flow and tailwater recovery, reach 70–90% or more.

Which crops use flood irrigation?

Rice (basin), pasture, alfalfa and small grains (border), and row crops such as maize, soybeans, cotton and vegetables (furrow). Orchards often use basins.

Is flood irrigation bad for the environment?

It can be, when poorly managed, because it wastes water and runoff carries nutrients out of the field. It is also the lowest-energy method, since it uses gravity. Efficiency measures such as levelling, surge irrigation, tailwater recovery and no-till furrows reduce the downsides.

Does flood irrigation use energy?

Only to pump water to the field, if the source is lower than the field. The irrigation itself runs on gravity, which makes it the most energy-efficient method at the field.

Does flood irrigation work on sandy soil?

Poorly. Water soaks in too quickly and drains below the roots before it covers the field. Sprinkler, pivot or drip irrigation are better suited to sandy soils.

What is ditch irrigation?

Ditch irrigation is flood irrigation where the water is supplied from a ditch, through gates, siphon tubes or cuts in the ditch bank.
